Module Type7733 Model

Module type Resistivity / Conductivity Transmitter 7733

-Compact & Wide measurement range-

【Features】
◆ Compact size & easy fit on DIN rail
◆ Accurate measurement for both resistivity & conductivity
◆ Digital temperature compensation
◆ 2-Analog outputs (Water quality & temperature)
◆ Wide measurement range for conductivity (0~10,000μS/cm)

Specifications
Model 7733 - RC - S - D1
Measurement range
-Resistivity-
0 ~20 MΩ・cm

-Conductivity-
7701 sensor series 0 ~4、0~20、0~40、0~400 μS/cm
7735-S100 sensor series 0~1,000、0~2,000、0~5,000、0~10,000 μS/cm
Water temperature 7701 sensor series : 0 ~100℃ ( except 7701-S400 : 0~80℃)
7735-S100 sensor : 0~50℃
Temperature compensation Digital temperature compensation
Repeatability ±1.0 % FS
Analog output Two 4 ~20mA DC outputs ( Max. load resistance 500 Ω)

Output 1 Resistivity or Conductivity 4 ~20mA DC (selected range)
Output 2 Temperature 4 ~20mA DC (0~100℃)
Power supply DC 24V ±10%
Power consumption Max. 5 VA
Operating environment Temperature : 0 ~ 50℃ Humidity : 5~ 80%RH ( no condensation)

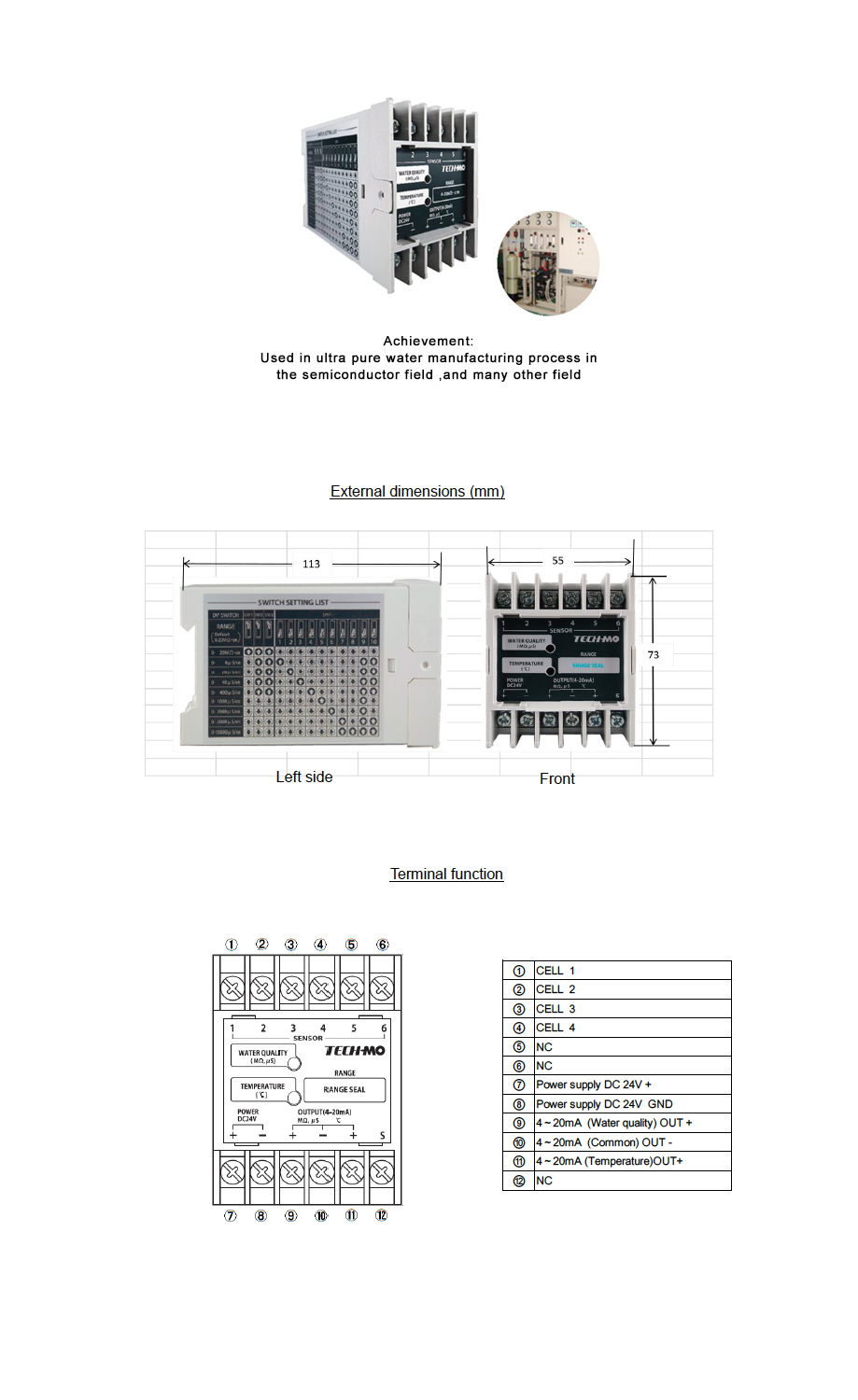

Outer dimensions 73mm(H) × 55mm(W) × 113 mm(D)
Installation 35mm DIN Rail
Compatible sensor R3/4 Type: 7701-S300 , 7701-S310 , 7701-S600
R3/4 Type: 7735-S100 (above 1000μS/cm)
R1/2 Type: 7701-S400 , 7701-S500
