Mu(μ) Series7775Model

Conductivity Transmitter 7775

-Ultra-Compact-

【Features】
◆ Sensor integrated
◆ Quick response
◆ Temperature compensation
◆ Wide range of water temperature
◆ Easy to configure

Specifications
Model (1)7775 - C - 5H - D1
(2)7775 - C - 2M - D1
Measurement range
(Temperature compensation value)
(1)0 ~ 500 μS / cm
(2)0 ~ 20 μS/cm
Rang of water temperature 5 ~ 95℃
Temperature compensation Digital temperature compensation
Repeatability ±1.0% FS
Power supply DC 24V ±5% Max. 100 mA
Material Outer case : PPS ( polyphenylene sulfide) Electrode : SUS316
Sensor section Cell constant : 0.2 cm-1 Connector : R1/4 Operating pressure : Max.0.5 Mpa
Operating environment Temperature : 0 ~ 60℃ Humidity : 5 ~80%RH ( no condensation)
Cable cable 2000mm ±50 mm (brown:DC24V, blue: 0V , black: 4~20mA) AWG23 (equivalent to 0.3sq)

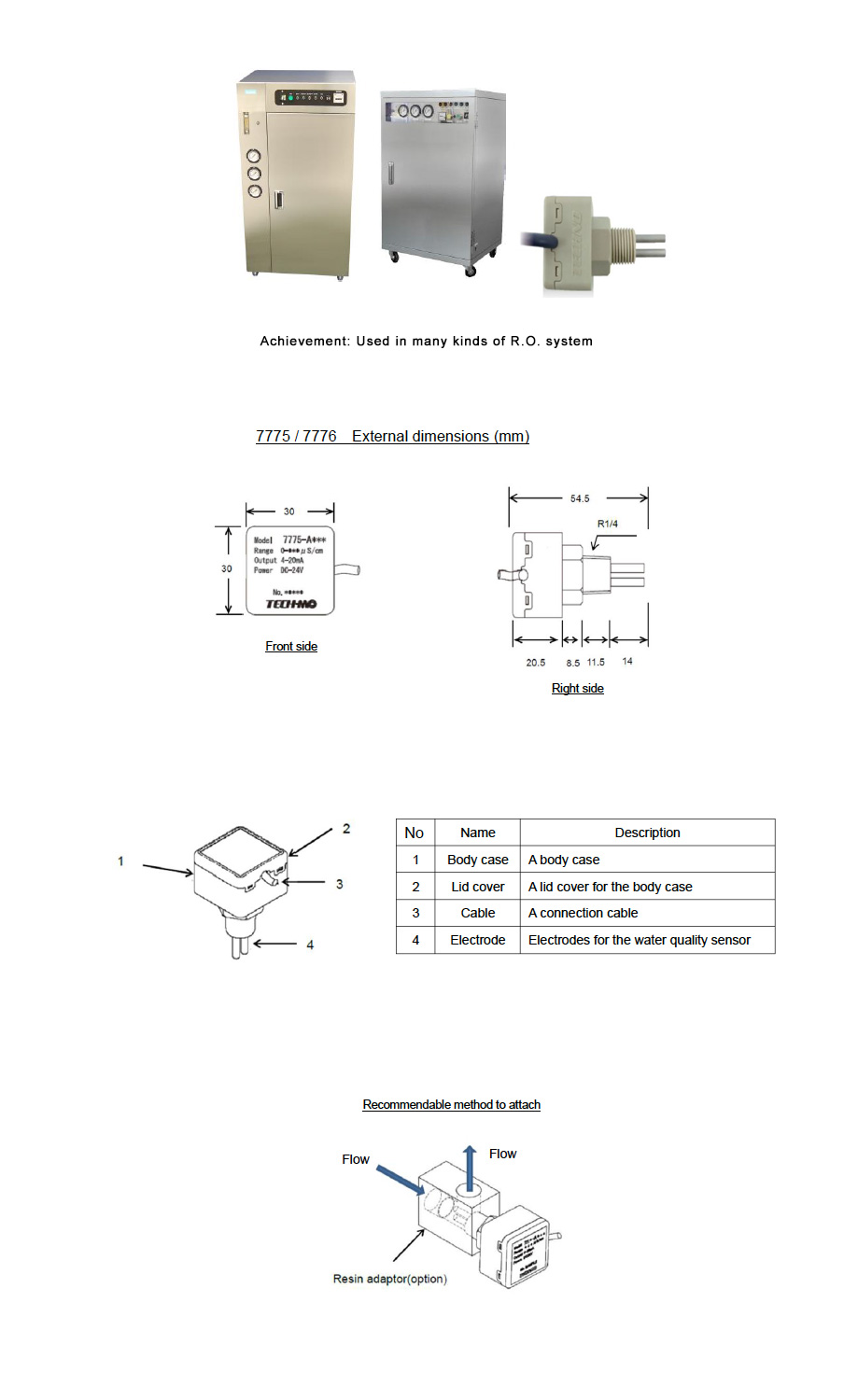

Outer dimensions 30mm(H) × 30mm(W) × 54.5 mm(D) (including the sensor section)

※ Caution :
Resin adaptor required when the join is the metal pipe or the metal tank
Resin adaptor (option) R1/4 : 7755-A005 PVC , R3/8 : 7755-A007 PVC
